Chapter1 Product assembly
Noted: Cut off electricity before product assembly and disassembly.

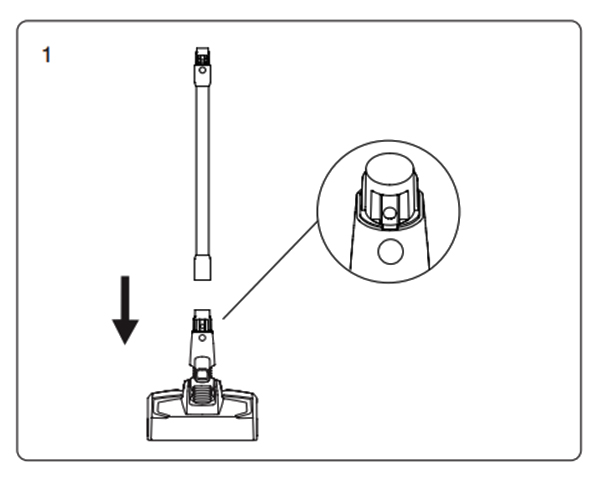

Assemble electric floor head with metal tube
Hold the floor head with left hand, use right hand to insert the metal tube vertically into floor head, align with the conductive needle, press the tube until a “click” sound is heard.
Attention: Keep the handle and floor head in the same direction, conductive needle shall align with the socket.
When packing, storing or cleaning, if the electric floor head needs to be removed, press the brush release button as shown in the picture and pull the electric floor head in the direction shown in the picture. (Fig 1)
Assemble the battery pack and handheld vacuum cleaner

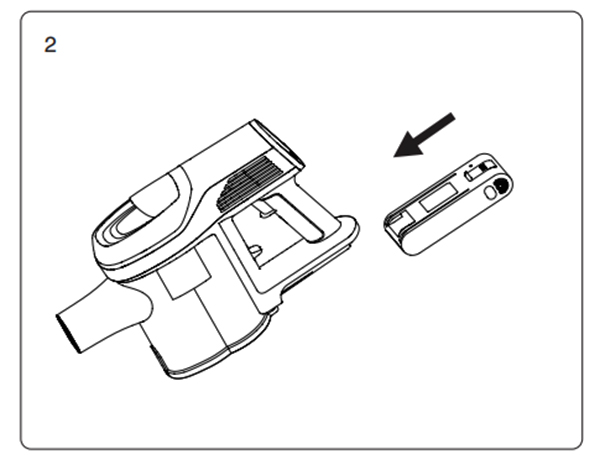

Assembly of battery pack: hold the hand-held vacuum cleaner in one hand, hold the battery pack in the other hand, aim at the guiding groove on the body, slide in the battery pack according to the arrow direction shown in the picture. Pull the battery pack after installation to make sure it does not get loose. Attention: when the vacuum cleaner is long idled, please remove the battery, pack the product and store it in a cool and dry place, avoid direct sunlight or humid environment. (Fig 2)
Assemble metal tube and handheld vacuum
First, assemble floor head and metal tube according to the method of assembling electric floor head and metal tube.

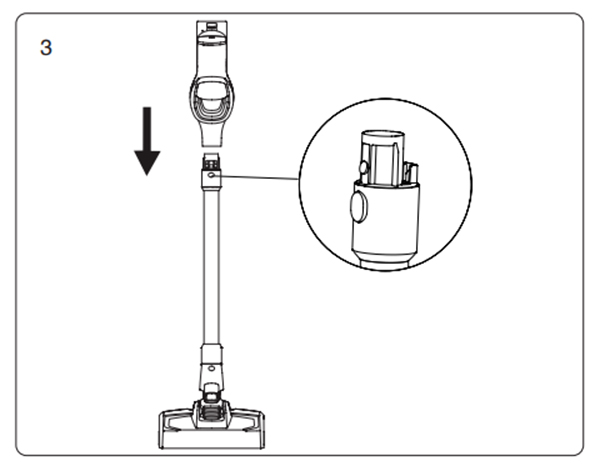

Assemble the floor head with metal tube assembly and handheld vacuum cleaner: as shown in the picture, align the conductive needle of the metal tube with the coupler of the suction nozzle, push up until a “click” sound is heard. (Fig 3)
Charging holder assembly

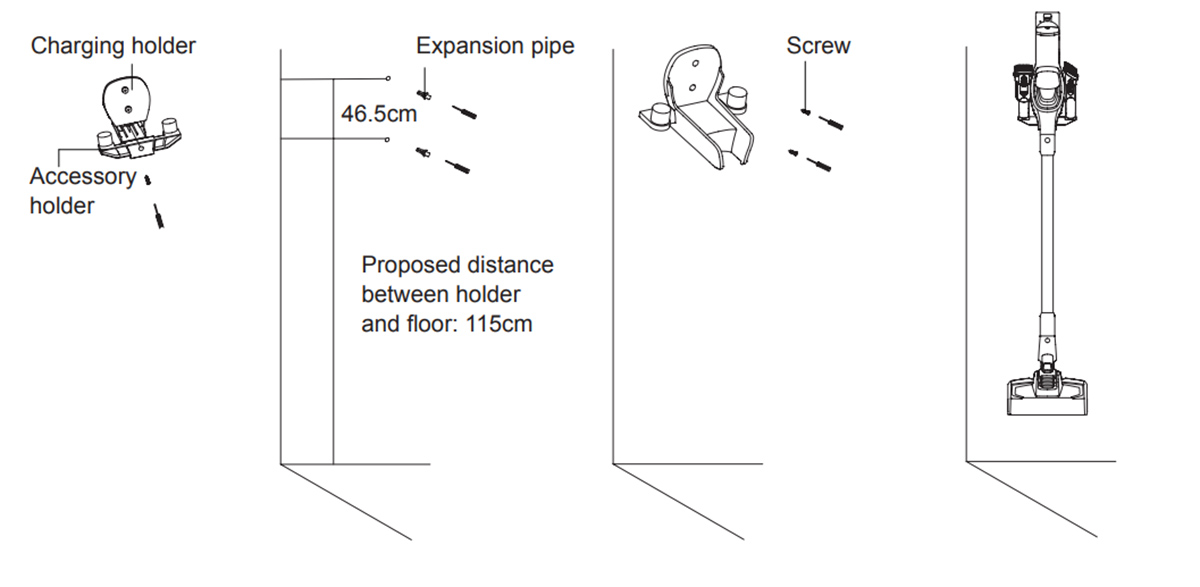

Assemble accessory holders to the charging holders, then fasten accessory holders with screw. Put the vacuum cleaner in the holder, and lean the vacuum cleaner against the wall, place the holder in the position that vacuum cleaner floor head does not touch ground. Take off the handheld vacuum cleaner, place expansion pipe on the wall and place the holder to the expansion pipe position, then lock in the screw. After assembly completed, put the vacuum to charger holder to charge or store.
Attention: Do not fix the holder to bathroom or other humid wall.
Assembly of accessories
For the convenience of use, this product is specially equipped with some accessories for the hand-held part of the vacuum cleaner. When you use the handheld vacuum cleaner alone, you can directly connect the accessories according to your needs or connect the accessories through the stretch hose.

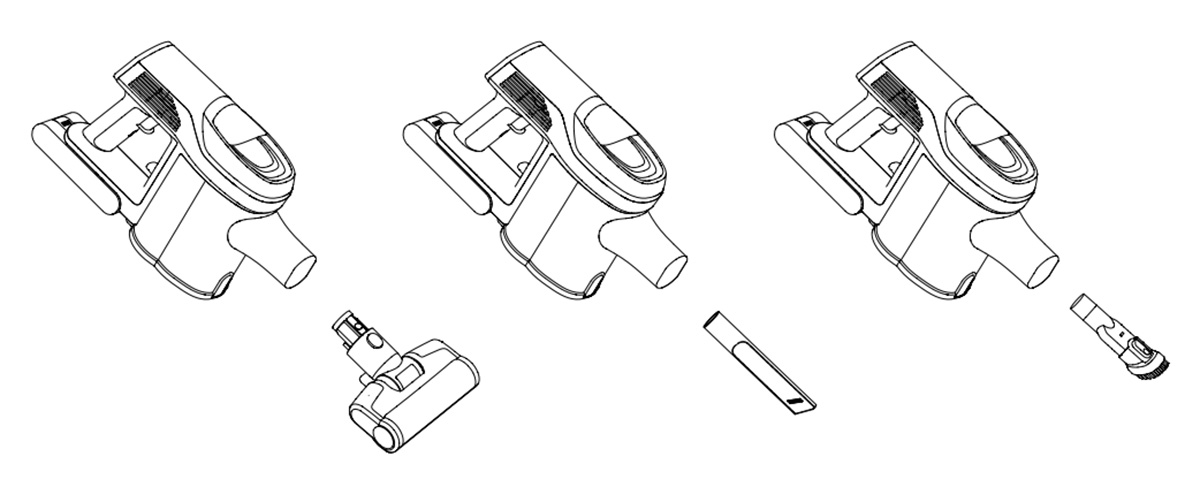

Connect electric mattress head, crevice tool, upholstery tool and dusting brush to handheld vacuum as the picture.

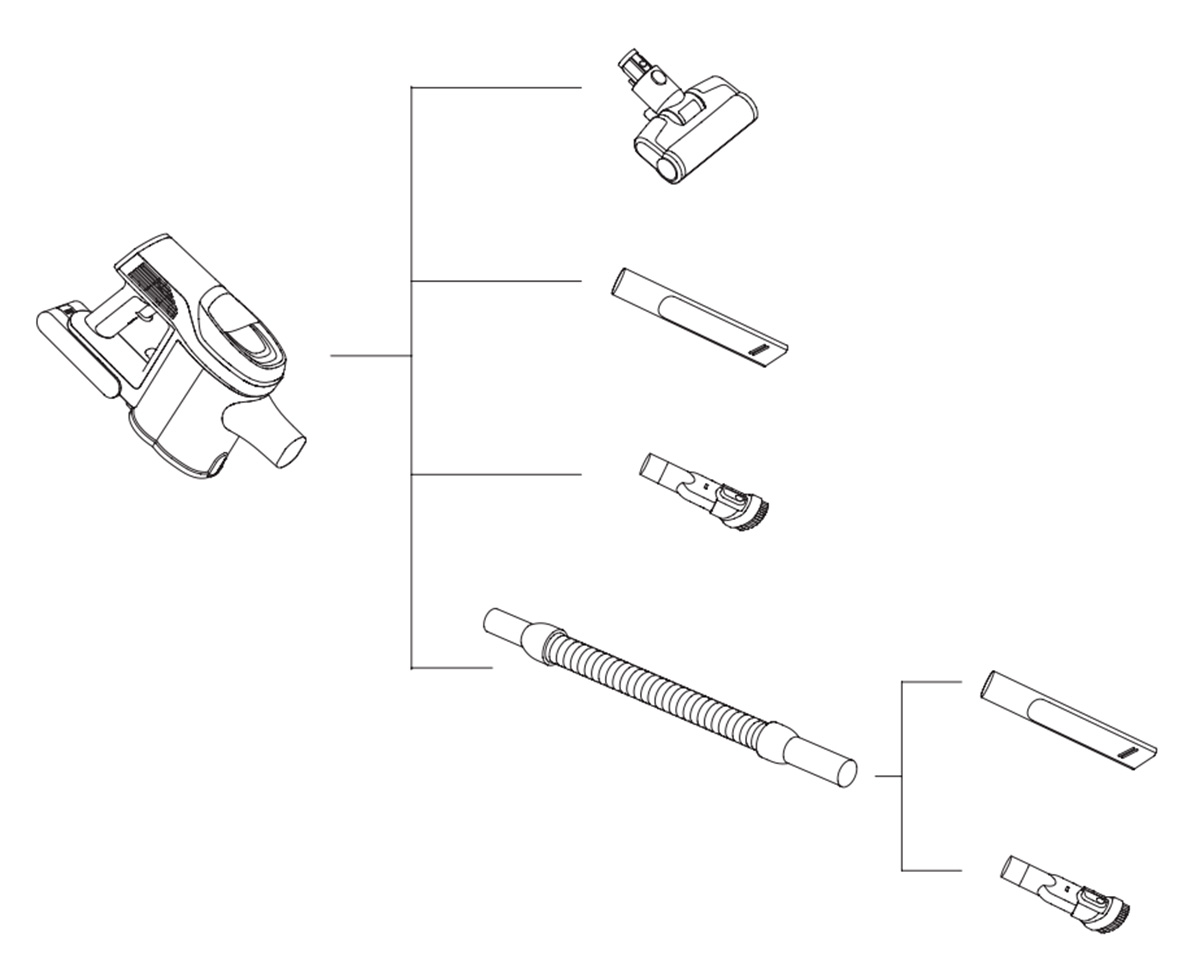

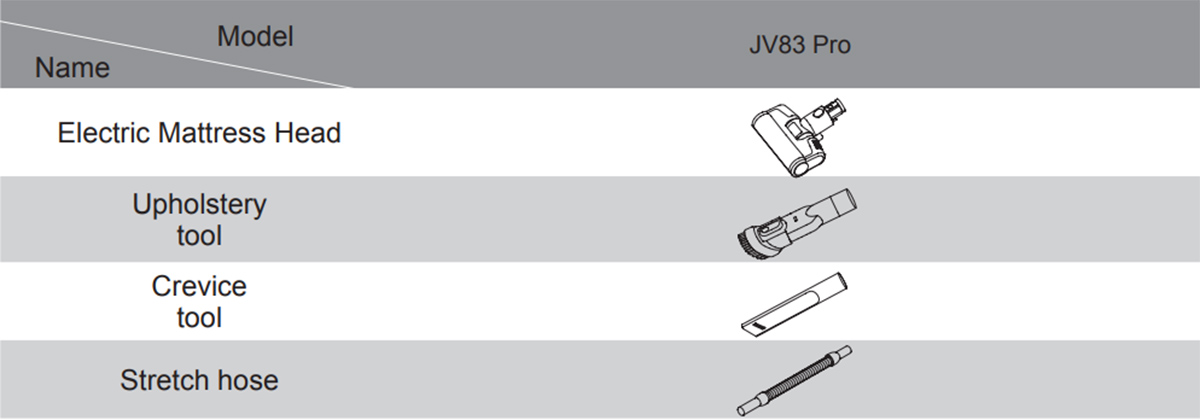

Accessories Connection List
Use of Vacuum
Charging
Attention: When use the product for first time, battery power is not full. Need to charge the vacuum before using.
Charging of vacuum cleaner

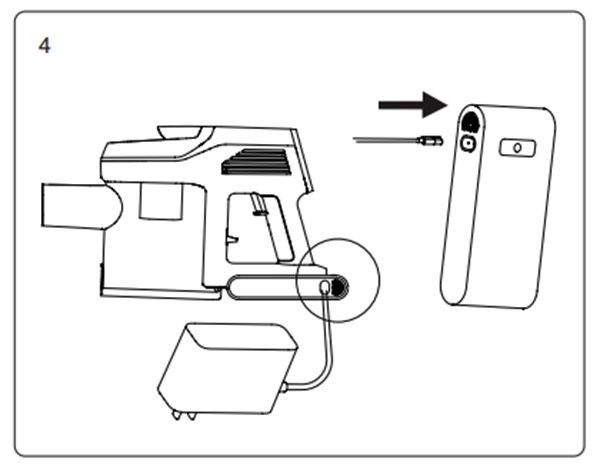

When the vacuum cleaner power is insufficient, charge the vacuum cleaner in time ; When the voltage is too low, to protect the battery, vacuum cleaner will be automatic power-off, at this time the vacuum cleaner need to be charged. When charging, plug the charger connector into the A/C power socket, plug another end of charger into battery to start charging. When the handheld vacuum cleaner LED display shows an increase in power, it indicates that the vacuum cleaner is charging. When charging is completed, LED display show 100% power. (Fig 4)
If battery pack is charged separately without being assembled on machine, during charging, indicator in battery pack is red and turns green after charging is completed.
Attention
1. When battery power is below ≤20%, if product is working in Max mode , it will change to Turbo mode automatically. When battery power runs off, product will turn off automatically.
2. If vacuum cleaner is long idled, charge the battery every three months to avoid battery failure.
After charging, please pull the charger plug off power socket and stop charging.
Attention: if power cord is damaged, to avoid danger, it must be replaced by professional staff of the manufacturer, repairing agent or similar department.
Use of handheld vacuum and LED screen contents

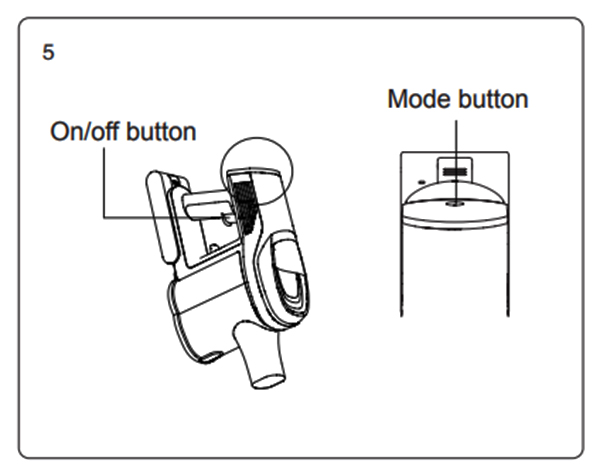

Take the vacuum cleaner off the storage holder, press the on/off button to start or stop the vacuum cleaner. Mode button can adjust working mode. When machine is turned on, it works in Auto mode, press the mode button to switch to the sequence of Turbo- Max - Eco mode. During mode switch the mode will be displayed in LED screen. (Fig 5)

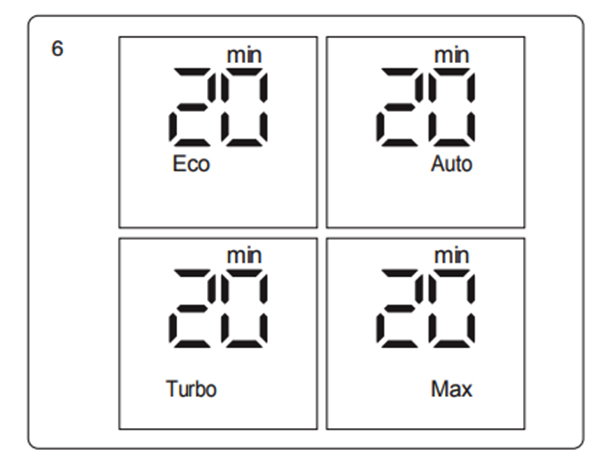

Middle of LED screen displays product run time left in current mode. When mode is changed, left run time will also change accordingly.
When product works in Max mode and battery power drops below 20%, to extend product run time, product will automatically switch from Max to Turbo mode. After battery is charged to higher than 20% power, product can work in Max mode. (Fig 6)
When the product is cleaning floor or carpet under Auto mode, it will adjust working power basing on the floor type it detects, in order to achieve higher cleaning efficiency. Under Auto mode, LED screen display Auto regardless how high the working power is.
Use of electric floor head
Electric floorhead is suitable to clean all types of floor and carpet.

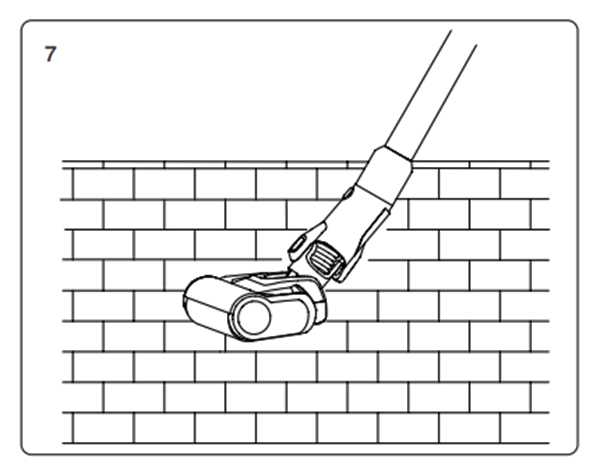

Attention: During the operation of the electric floor head, if there is a large volume of foreign matter inhaled or too much fiber wound, or even a child in the play of the machine mistakenly put his hand into the nozzle, resulting in the brushroll abnormal stop, the electric floor head will stop working, in order to protect personal safety and brush motor. (Fig 7)
Use of accessories

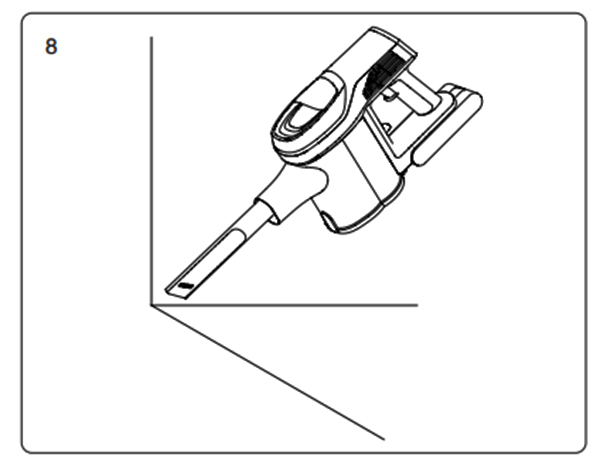

Crevice tool: suitable for cleaning crevice, door or window corners and other narrow gaps. (Fig 8)
Upholstery tool

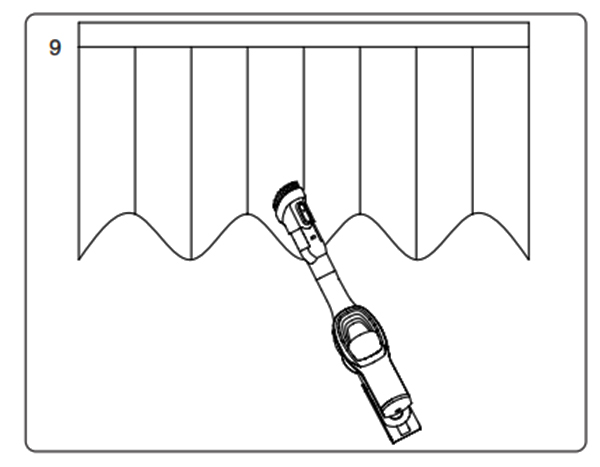

Suitable for cleaning closet, windowsill, sofa and table surface.(Fig 9)
Electric mattress head

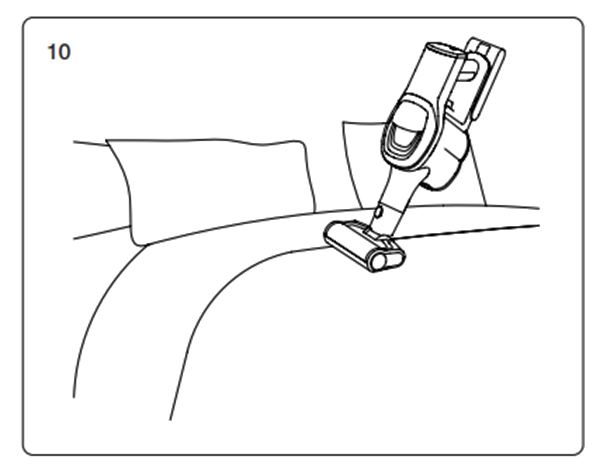

Suitable for sofa and bed mattress. The brushroll beats out and then cleans the dust mite and allergen from deep sofa or bed. (Fig 10)
Chapter 3 Cleaning and Replacing Parts
Attention
1. HEPA filter is available for sale from local vacuum cleaner distributors.
2. It is recommended to clean the dust cup after each use; When the dust cup is full or the HEPA filter is clogged, it needs to be cleaned and replaced if necessary.
3. Electric floor head brushroll might be entangled with hair after long time use. It needs to be cleaned in time to keep the vacuum working more efficiently.
Clean dust cup and filtration system

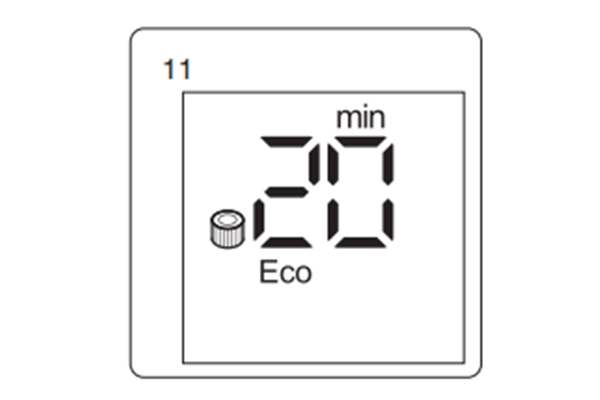

When dust cup is full or HEPA is clogged, LED screen will display HEPA icon as the picture to remind to clean dust cup and filter. Please clean dust cup and HEPA filer in time. Replace HEPA filter if necessary. (Fig 11)
Steps of cleaning dust cup and filtration system

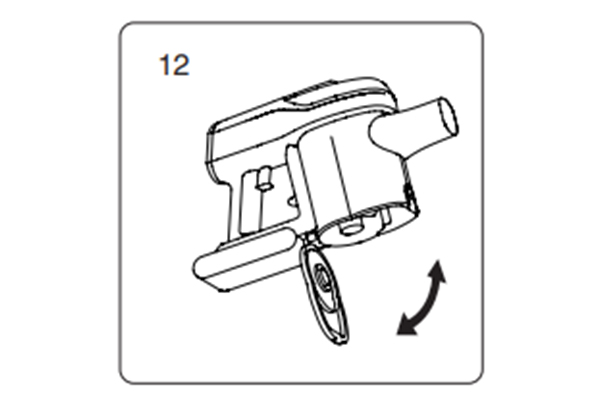

1. Press dust cup bottom cover release button, open dust cup bottom cover, dump dust into trash can.(Fig 12)

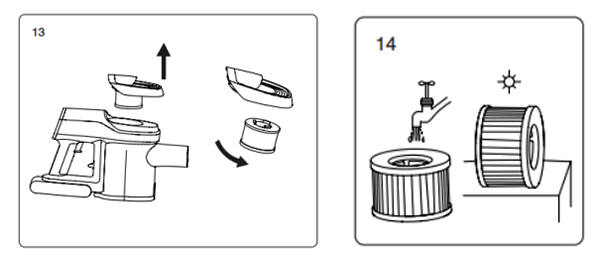

2. Lift up HEPA lid assembly from dust cup. Rotate HEPA filter clockwise and remove it from HEPA lid for washing. After washing, HEPA need to be completely dry before using it again. (Fig 13)(Fig 14)

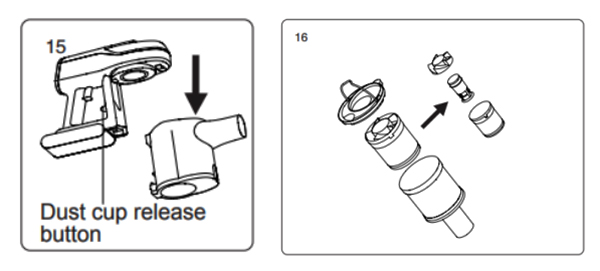

3. Push dust cup release button located behind the dust cup and remove dust cup. Hold cyclone assembly handle and pull it out of dust cup. Disassemble cyclone top, secondary dust cup, adjustment ring and inner cyclone in sequence for cleaning. After washing, all parts need to be completely dry before using again. After cleaning, assemble the parts back in the opposite sequence of disassembly.(Fig 15)(Fig16)
Clean brushroll

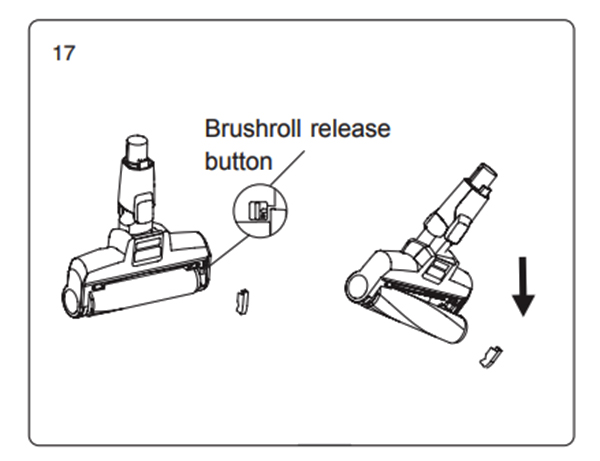

1. Move the brushroll release button along the arrow direction remove side cover.
2. Remove one end of the brushroll and take it out from nozzle for cleaning.
3. After cleaning or replacing brushroll, assemble it back in opposite sequence of disassembly. (Fig 17)
Storage of Vacuum Cleaner
When the vacuum is long idled, remove the battery, pack the product and store it in a cool and dry place, do not put in direct sunlight or humid environment.
Battery pack disassembly

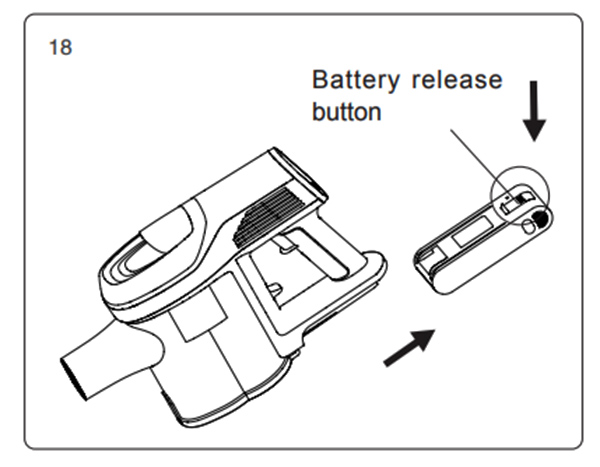

Press the battery release button, remove the battery pack in the arrow direction and place the battery in a plastic bag, then store it in a dry place.(Fig 18)
