Frying pot:

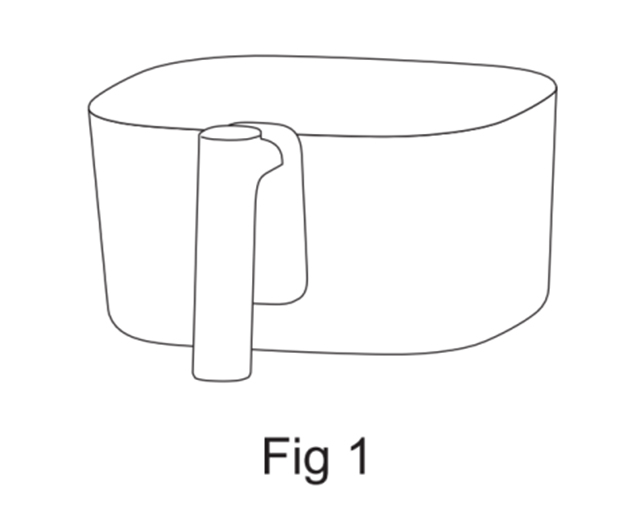

Frying pot is the main pot for cooking ingredients, with a maximum capacity of 4L.(Fig 1).
Note:
① Push the frying pot to the bottom when installing it and fit it in place with the mainbody.
② The frying pot is made of glass, make sure there is no external force collision during the handling process to avoid damage.
③ During heating, the surface temperature of the pot is high. Do not touch it directly, otherwise it may cause burns.
④ Do not put the hot frying pot after cooking into water or refrigerator to avoid glass damage.
Crisper plate：

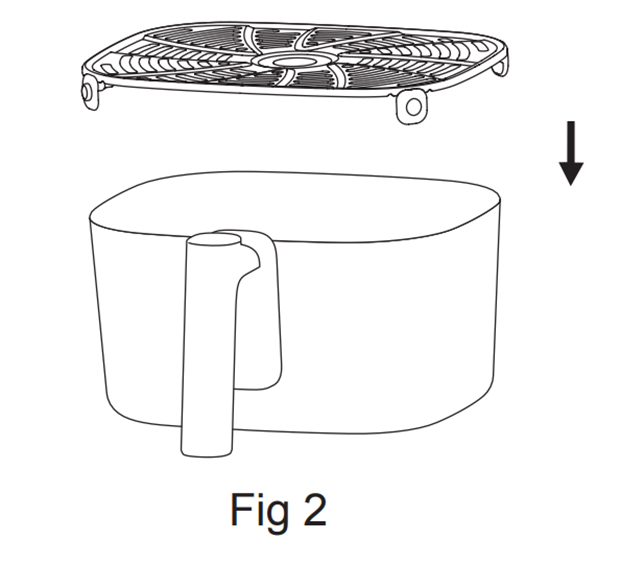

The crisper plate is installed inside the frying pot (with its four legs facing downwards) and can be taken out for cleaning. Its main function is to lift the ingredients up, for better hot air circulation, and help them evenly heat up.(Fig2).
Note:
① Except for special requirements, crisper plate must be used during air frying, otherwise it may affect the cooking effect.
② Place the ingredients in a single layer on the crisper plate, do not stack them, otherwise it may affect the cooking effect.
Grill pan:

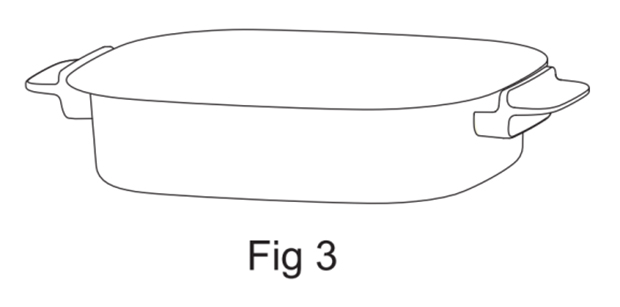

grill pan is mainly used to fry or grill food.(Fig 3)
Note:
① When installing the grill pan, be sure to place it stably on mainbody.
② During heating, the surface temperature of the pan is high. Do not touch it directly, otherwise it may cause burns.
③ The grill pan is only used for frying and grilling. Do not use it to heat liquid.
Grill pan lid:

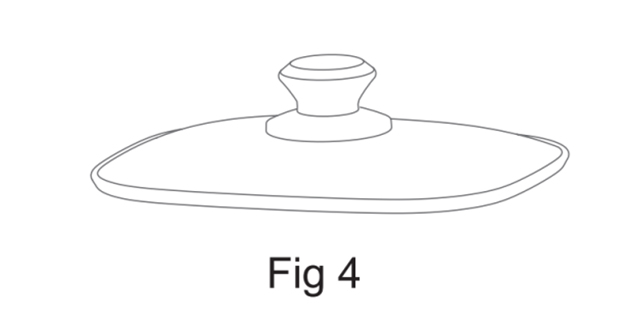

Grill pan lid is used together with grill pan to improve heating efficiency and prevent oil splashing.(Fig 4).
Note:
The grill pan lid is made of glass, make sure there is no external force collision during the handling process to avoid damage.
Chapter 2 Use of the Product
Before first use, the following points should be noted:
1. Read this user manual carefully.
2. Place the product on a stable and flat counter top. Do not place it on heat-labile surface.
3. Before plugging into power socket, confirm that the power supply is 220V-240V~and ensure it is grounded.
4. Before initial use, wash the the frying pot, crisper bracket, grill pan, and grill pan lid with warm water, detergent, and non abrasive sponge.
5. During initial use, it is normal to have odors a small amount of smoke. After cleaning, the odor can be removed by heating at 200 ℃ for 20 minutes under air frying mode.
6. Do not immerse the mainbody in water or rinse it under tap water, as there are electronic and heating components in mainbody.
7. Do not cover the air inlet and air outlet of the product during operation.
8. When the product is working, the surface temperature of the air outlet, frying pot, grill pan, and grill pan lid is high. Do not touch them to prevent burns.

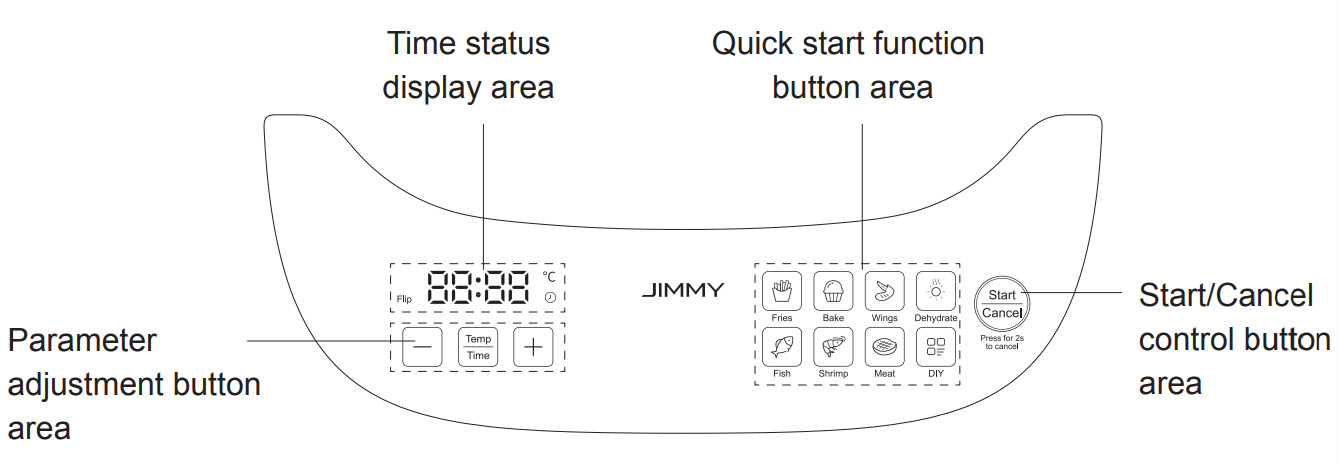

Function Description
Time status display area
1. When “
”lights up, the screen displays the remaining time.
2. When“℃ ” lights up, the screen displays the preset temperature.
3. When “Flip ” lights up with 3 beeps, take out the frying pot, flip the food ingredients and then reinstall the frying pot into mainbody, and the product will automatically resume working.
4.“
”will show corresponding temperature and time.
Quick start function button area
The product is preset with 7 quick start functions including French fries, Bake, Wings,Dehydrate, Fish,Shrimp, Meat and a DIY mode . You can directly select the quick start function or customize your cooking.
Note:
1. In air frying mode, all quick start functions can be used.
2. In grilling mode, only fish, shrimp, meat and DIY can be used.
Parameter adjustment button area
1.“
”button:Used to display between temperature and time.
2. “
” “
” button: In time displaying mode: Press “
” or “
” to adjust cooking time. Adjustment range is 1-45 minutes. Long pressing the button can adjust time fast. In temperature displaying mode : Press “
” or “
” to adjust cooking temperature. The adjustment range under air frying mode is 50℃ to 200℃, and the adjustment range under grilling mode is 150 ℃ -220 ℃ . Long pressing the button can adjust temperature fast.
Start/Cancel control button area
1.“
”button: After the function and parameters are set, press“
”button to start cooking.
2. During parameter setting or cooking, press “
” and hold for two seconds to return to a standby state, and the display screen displays "----".
Function switch
This machine has two functions: air frying and grilling. Follow below steps to switch between the two functions.
1. Air frying mode to grilling mode:

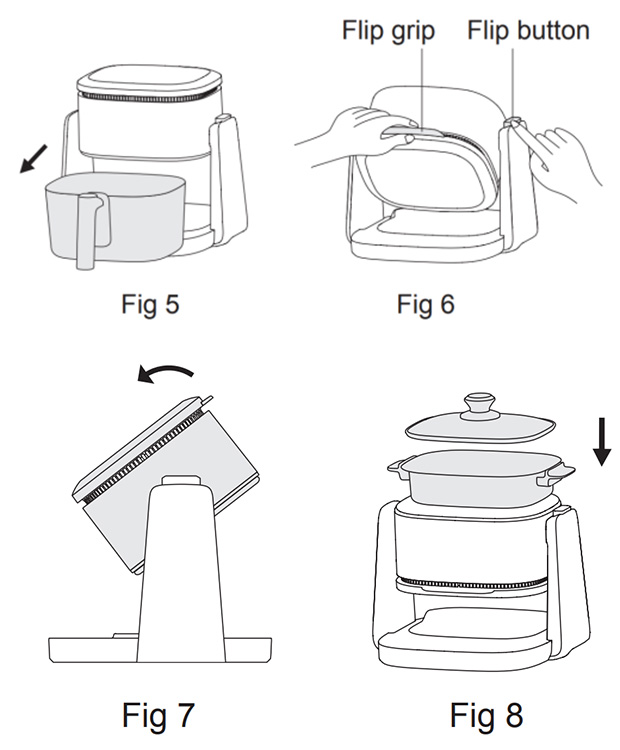

Take out the fryer (Fig5) first, press and hold the flip button while holding onto the flip grip (Fig6), flip the machine top in the arrow direction shown in picture(Fig 7). When a 'click' sound is heard, it indicates machine is flipped in place. Place the grill pan on mainbody for use (Fig 8).
2. Grilling mode to air frying mode:

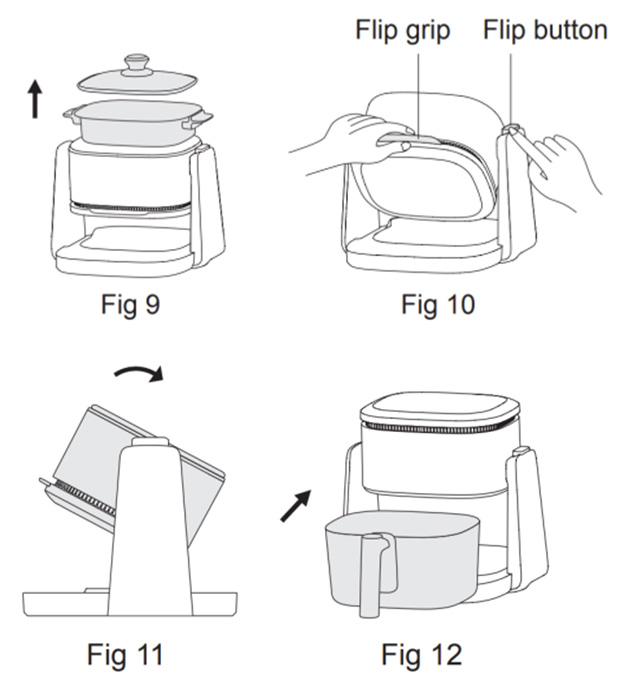

Remove the grill pan first(Fig 9), press and hold the flip button while holding the flip grip (Fig 10), and flip the machine top in the arrow direction shown in picture(Fig 11). When a "click" sound is heard, it indicates machine is flipped in place. Place the frying pot into machine for use (Fig 12).
Note:
1. Machine can only be flipped in the direction required in the picture, cannot be flipped in opposite direction.
2.Do not use brute force during the flipping process. When it is found that the flipping cannot be done, please confirm whether the flip button is pressed and whether the flipping direction is correct.
3. If the machine has just finished working, During flipping, be careful not to touch the heating tube and nearby metal parts to prevent burns.
Operation steps
1. Example of air frying mode "Wings”

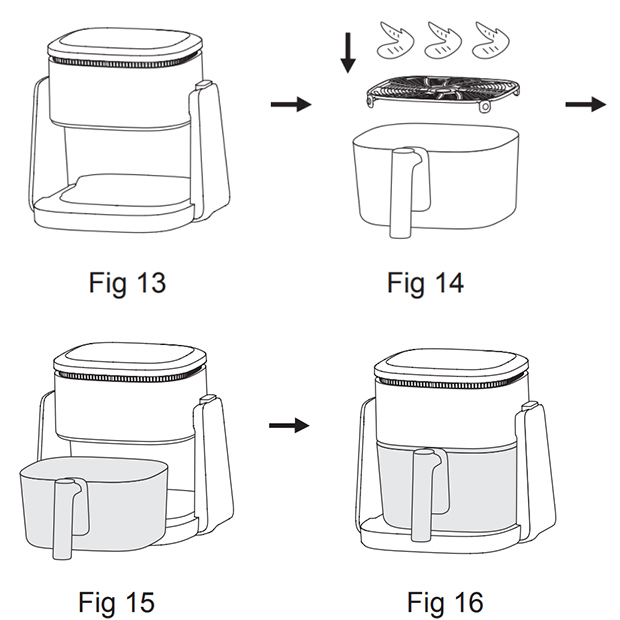

① Adjust the machine to air frying status(Fig13)
② Make sure silicone rubber is on the crisper bracket, and place the crisper plate correctly in the frying pot (with four legs facing downward)(Fig 14).
③ Lay the marinated chicken wings flat on the crisper bracket(Fig 14).
④ Install the frying pot into mainbody and push it into place(Fig 15-16).
⑤ Press“ ” button in quick start function area, display screen shows 200℃、20min.
⑥ Press “”button to start cooking, display screen starts to show remaining time.
⑦ When the cooking time is over half way, the product makes a beep and the "flip" indicator the display area keeps flashing. Please pull out the frying pan and the machine will pause cooking. After flipping the chicken wings and installing the frying pan in place, the machine will continue cooking.
⑧ When the product makes five beep sound, the cooking is completed and the display area shows "End". Carefully remove the frying pot and take out the ingredients.
Note:
1. The machine does not have a pause button. If you need to pause, pull out the fryer to pause, and the display screen displays "OPEN". Machine resumes working after re-installing.
2. When installing the frying pot, be sure to push it to the bottom and fit it in place with the mainbody
2.Example of air frying mode "Fish”

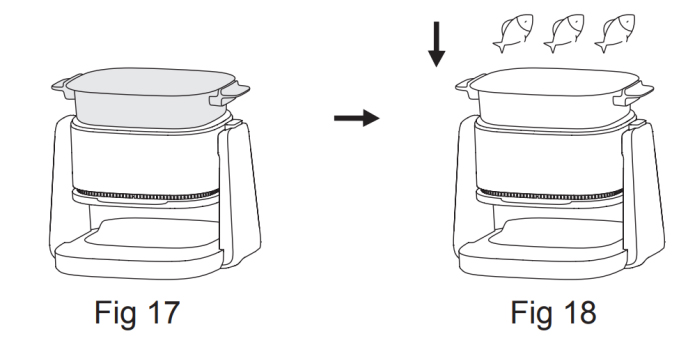

① Adjust the machine to grilling status and assemble grill pan(Fig17)
② Press “” button in quick start function area, display screen shows 200℃、20min.
③ Put oil into grill pan, press “” button to start preheating, display screen starts to show remaining time.
④ After 3 minutes, put fish into pan to grill (Fig 18), flip the fish in suitable time.
⑤ When the product makes five beep sound, the cooking is completed and the display area shows "End". Carefully remove the grill and take out the ingredients.
Note:
1.When installing the grill pan, be sure to ensure that it is placed flat and free from warping.
2.When using the grilling mode, please pay attention to the anti scalding label warning to prevent burns.
3. The pan lid can improve heating efficiency and reduce water evaporation. You can choose whether to use the pan lid according to your need.
Cleaning and maintenance
- Unplug the power plug from the socket and wait for the machine body to cool before cleaning and maintenance, otherwise it may cause danger such as electric shock, fire, and scalding.
- After cooking, wait for pot or pan to cool down before cleaning the remaining oil stains in the pot or pan.
- Do not immerse the mainbody in water or rinse it under the tap water. Instead, use a wet cloth to wipe the surface.
- It is recommended to use warm water, detergent, and non abrasive sponge to clean frying pot, grill pan, crisper bracket or grill pan lid.
- Do not use the dishwasher to wash frying pot.
- Do not put the hot frying pot, grill pan or grill pan lid that has just finished cooking into water or refrigerator, in order to prevent damage caused by cold and hot shock to the product.
